Post your combos and E.T.s

Discussion in 'Big Block Cadillacs' started by shiftless, Dec 21, 2005.

  1. Andy V

    Andy V Active Member

    Joined:
    Oct 22, 2004
    Messages:
    1,409
    Likes Received:
    15
    Location:
    Harrisburg, PA
    Here's an updated timeslip on the latest motor in the car:

    507 based on .030 over 5200 block, zero decked
    76cc heads ported, 2.19/1.84 valves
    Edelbrock intake
    7" Scat H beam rods
    Probe Forged pistons (10:1)  [the MTS combo]
    Comp cam  232/237 at .050, .547 lift
    1.7 stud mount roller tip rockers
    850 Holley vac. sec.
    Stock exh manifolds, 2.5" dual exhaust w/ cutouts in the middle tranny area
    TCI Truck converter 2400 stall, 2.94 rear gears (stock caddy rear)
    4900lb. with driver '68 deville convert

    N/A best run first time out:
    60'    2.232
    330'  6.119
    1/8    9.312
    mph  77.77
    1000  12.043
    1/4    14.365
    mph    96.97

  2. canadianal

    canadianal New Member

    Joined:
    Nov 29, 2006
    Messages:
    106
    Likes Received:
    0
    hit new to the siite

    110 in wheelbase heavy 27 t bucket 3050 lbs with me in it, original 1971 500 engine out of a Eldorado original bottom end and rebuilt heads 35 year old Turbo 400  with a BM shift kit stock converter 355 rear gears in a posi rear, stock intake, home modified quadrajet with 29 inch by 10.5 slicks will run 13.20 and 30's all day long leaving it in drive and shifting at 4600 rpm with a 1.81 60 ft  best of 12.96 shifting manually at about 4800 blast to drive have built a set of zoomies for the drag races.


    Attached Files:

  3. Don

    Don Active Member

    Joined:
    Oct 14, 2004
    Messages:
    1,043
    Likes Received:
    0
    Location:
    Rocky Top Tennessee
    1974 Cadillac 472 Block bored 30 over and O-ringed
    793 Crank turned 10 mains & 10 rods, balanced by Mr. Potter to my pistons & rods
    Ross Forged 30 over 10:1 pistons fly cut for larger valves
    Scat Forged Rods
    Potter Stud Full Main Bearing Girdle Windage Tray and Crank Scraper & Custom Rear Sump Pan
    950 76cc Cast Iron Heads Ported by Potter and T&G Automotive Intake flow 325cfm and exhaust was ? can't remember
    5 angle valve job by T&G Automotive with dual springs for the big stick
    2.19 Stainless Intake Valves & 1.79 Exhaust Valves Massaged by Jerry Potter
    Potter Head Crossover Cooling Kit
    Copper Head Gaskets
    Hastings Rings
    Clevite Main Bearings
    Clevite Cam Bearings
    Potter Cam Button
    Potter Shaft Roller Rockers
    Custom Comp Solid Lift Cam .655 lift Intake and .650 Exhaust, Duration at .050 is 264 Intake & Exhaust Lobe Seperation is 108.0
    Trick Comp solid lifters with a .012" oil hole
    Bulldog Dominator Aluminum Iron Head Intake with Epoxy added by Potter(Nice Job), and milled by Jerry to fit the block
    Bushed Lifter bores by Jerry Potter
    Cloyes True Roller Chain & Gear
    New Melling Oil Pump & NAPA Gold Filter
    2 Gallons DELO Oil
    New Water Pump
    Potter Aluminum Timing Tab and Alternator Bracket
    Billet Pulley Set, Distributor Hold Down & Water Neck(Prototype Engineering)
    Potter Aluminum Valve Covers & K&N Breathers
    MSD Cadillac Distrubutor #8363
    MSD 7AL-2 Ignition
    MSD Blaster 2 Coil
    Taylor 8mm Wires
    Autolite Plugs
    Alloyblotz Stainless Engine Hex Bolt Kit
    Maddog SFI Flexplate
    ARP Head Studs
    Mike Cookes Headers(What a jumble of tubes) Ceramic Coated
    Holley 1050 Dominator(Massaged by Stan the Carb Man)
    Griffin 2 Row Aluminum 1.5" tube Radiator with Griffin Aluminum Shroud & Fan(Rated to 800HP)
    K&N Dominator Air Cleaner
    RobbMc 110 Fuel Pump
    RobbMc Mini Starter
    RobbMc 100 Micron Fuel Filter
    Potter Custom Fuel Lines
    K&N Fuel Filters

    1984 Buick Regal(Turd Brown for now) New Paint comming soon, Stock Interior
    Weld Wheels & MT Drag Radials & Slicks on another set of wheels
    Hurst Shifter
    Ford 9" Rear fitted for a G-body 3:89 Posi
    Double Adjustable Tubular Lower Control Arms
    Double Adjustable Upper Control Arms
    Tubular Upper A-arms
    Stock Cadillac TH400 with a shift kit
    PTC 4000 stall converter
    Driveshaft Safety Loop
    Borla Stainless Mufflers (Side Exit Exhaust)
    3 1/2" Cowl Fiberglass Hood (Bolt On)

    Best Pass at I 40 Dragway Test & Tune 60' time 1.648 and time was 7.336 @ 96.343 MPH

    Updated best pass 11/3/2007

    RT 0.003  60' time 1.648  and ET was  7.247 @ 98.567

    I added a 2" HVH Super Sucker and dropped the jets down to 95 primary & 96 secondary

  4. cashier(a.k.a troll)

    cashier(a.k.a troll) New Member

    Joined:
    Sep 11, 2007
    Messages:
    86
    Likes Received:
    0
    1973 nova
    500 .020 over
    7" scat rods press pins from marty at mts
    big block chevy probe pistons with a comp height of 1.640 flat tops.
    decked the block .020 to 0 deck the pistons final compression is 12to1
    crank stock machined and cryo treated
    intake is a old bulldog welded up and reworked
    holly 1050 dominator with a 1" spacer plate
    cam custom roller with bbc roller lifters and custom made link bars
    heads are iron ported with titanuim intake valves and psi pacaloy springs set up for roller cam
    rockers are a ??? there old but still work fine
    motor made 690hp and 700+ftq on a dts dyno
    on 100hp setup of nos it made 820hp
    car ran a best of 9.40s on the 100shot
    running c-16 vp fuel on nos

  5. dave brode

    dave brode Well-Known Member

    Joined:
    Oct 14, 2004
    Messages:
    14,871
    Likes Received:
    165
    Location:
    Frostburg, Maryland
    '71 C-10 pickup.

    1975 std bore, std crank, stock rod, stock bolts, stock valved stock rocker 500 [slight back cut on intakes]. Non-stock parts inside are a Howards cam and yellow GM behives from LS engines. Slight compression increase via .013" block cut and .024" head cut. 493 heads with bowl work and pushrod turn work, exh short turn cut down a bit. 8.6-1 CR.

    One .090" x .090" Somander groove in each cylinder's quench area, aimed at plug. 2215 edel, 1" open spacer, large primary QJ from a '76 caddy. Points, cheap yellow Accel wires. 87 octane, 36* timing. Cam is slow ramp 232/240 at 50, on a 112, .536" lift with stock rockers, installed +6.

    1.875" x 3.5" headers, 3" exhaust with bullet race mufflers [2 per side]. Switch-pitch 400, 3.55 gears, 29x18.5 mickey pros.

    Weighs *apx* 3860 w/o driver. 13.39 at 98 in fair air at 1250' track elevation in street trim. 1.82 sixty foot.

    Dave

    update:

    Swapped the too loose in low stall PAE convertor for a stock 2000/3000. Sixty foot went to 1.79 but rest of run was slower due to a different governor shifting at a too low 4100 rpm.

    Swapped in 4.10 gears, X pipe exhaust and raised intake roofs in the heads. Went 13.32 at 98 with a better 1.73 sixty foot in very poor air with governor set for apx 4700 shift.

    Another track with a so-so starting line, but better air gave me a 13.10 in same configuration. Removing air cleaner and dropping tailgate gave me a 12.97 at 100 with a 1.74 short time on both runs.

    All runs on 87 octane.

  6. Monzallac 425

    Monzallac 425 Active Member

    Joined:
    Jul 16, 2008
    Messages:
    853
    Likes Received:
    52
    Location:
    Salinas, Puerto Rico
    Car ..... 1980 Chevrolet Monza Notchback Coupe - Original owner car - Gutted Interior - Door beams removed - 1977 quad headight nose - 2600 lbs with driver


    Trans.... BOP Turbo 350 - Full manual shift - Stock stall convertor  - Hurst Promatic 2 shifter ( standard pattern)


    Rearend.... GM Hbody stock 7.5 10 bolt - 2.73  gears - Minispool


    Suspension ..... ( Rear)  Stock Torque arm - Cargoil rear springs - rear swaybar  (Front  ) V6 with A/C front springs - no swaybar ( factory delete)

    Wheels and Tires ....( Front )  Factory steel wheels 13x6 -  Champion Lemans  tires ( Firestone)  185 /80 /13 - (Rear)  Factory steel wheels 13x6 - Hoosier Road Race slicks - 21.5 x 8 x 13


    1st motor ...... 15K miles on stock rebuild 425 , Stock bore, 100% internal stock parts - stock manifolds -2 1/2 short exhaust with 11" custom glasspacks- HEI with Accel Module- 20* timing

    2nd motor.......49K miles on stock rebuild 425 , Stock bore, 100% internal stock parts , 1969 472 modified stock intake- same exhaust as 1st motor- HEI with Accel Module - MSD Soft Touch Rev Control with 4800 rpm chip - 20* timing

    3rd motor..........same as #2 above with Comp 270H cam

    Best ET on 1st Motor ...........14.27 at 93 mph

    Best ET on 2nd Motor ...........13.88 at 96 mph

    Best ET on 3rd Motor.............13.71 at 98.15 mph ( 6/20/09 )

    60 FT around 1.96 -1.97 ( 6/20/09)

    Just finished the  NHRA Division 7  Summit Bracket Racing series at Speedworld Dragstrip in Surprise AZ on August 2. 2008 Ran the first motor in race #1  , used my 90 Silverado 350 in races #2 and #3 , finished with the 2nd motor in races #4 , #5 , #6 and #7.


    Doug in AZ :quoties:


    Attached Files:

  7. bondsman

    bondsman New Member

    Joined:
    Jan 26, 2006
    Messages:
    157
    Likes Received:
    0
    Location:
    BROOKSVILLE, FL

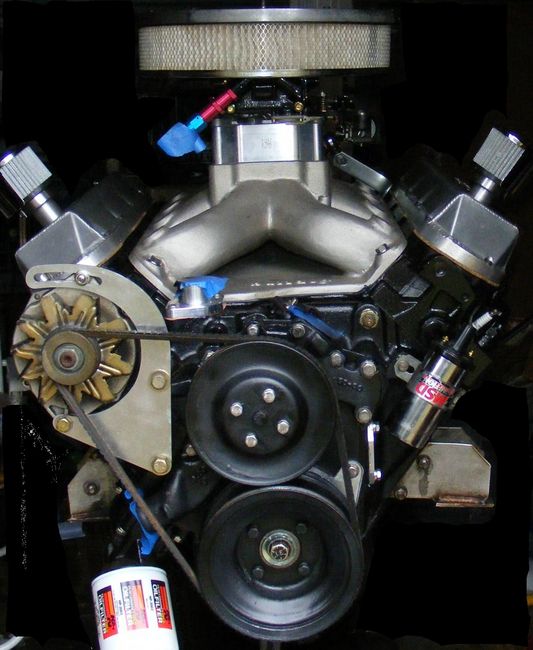

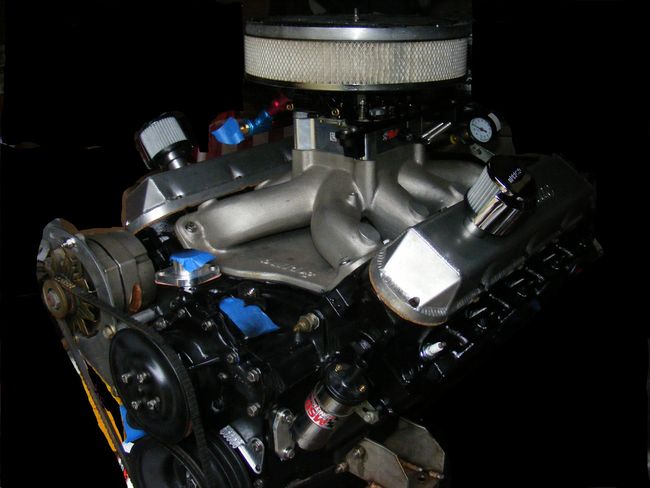

    my latest airboat motor.

    525 cid
    stroked 4.42 crank with  2.2 pin
    4.350 bore kb forge pistons with ceramic coat.  10.4-1  compression.
    7.1 -k1-tech rods before mts started to carry them :cursing:
    iron heads- big ss valves porting/polishing started by machine shop and finished by me(what a bitch) unshrouded a little
    cam 588 lift single pattern
    plasma moly rings
    old puddied up bulldog(thanks smalltruckbigcid)
    shaft rockers
    850dp built by a company that i cant remember the name right now

    [​IMG]

    [​IMG]

    [​IMG]

  8. dave brode

    dave brode Well-Known Member

    Joined:
    Oct 14, 2004
    Messages:
    14,871
    Likes Received:
    165
    Location:
    Frostburg, Maryland
    Forgot this thread was here.

    Update - different engine in '71 C-10. Apx 3860# w/o driver.

    11.7-1 CR 514"
    MTS 19cc Probe pistons
    Totalseal gapless top rings std oil tension
    PEP bushed I beam rods .026" ish side clr
    .0025" rod, .0032" main clr
    Stock main bolts
    .010"/.010" crank, stock stroke

    Elgin 260/254 at .050" solid, .640"/.624", 114 LSA+3
    Comp 930 springs
    Ferrea tool steel lifters
    Grooved lifter bores
    MTS grade 9 head bolts
    Potter shaft rockers
    Home ported 250 heads, MTS 2.19/1.84"
    Pushrod and middle turns pushed back apx .100"
    Intake roofs raised .150".
    2115 edel matched by raising roofs apx .080"
    Divider removed
    1" open spacer #4781 dp
    Single Somender groove per cyl

    11.85 at 112.xx in 2500' air. One good pass with 36* timing. 7.50 1/8th, 1.68 sixty.

    More tuning to come.

    Update:

    Swapped 4.10s and posi out for 4.33s and spool. 11.70 at 111 in headwind. 1.59 sixty, 7.34 1/8th.

    Update: Took some jet and timing out. 11.66 at 113.96 1.63 with sixty. Tire spin issues.

  9. MTS Marty AKA Nashillac

    MTS Marty AKA Nashillac New Member

    Joined:
    Oct 22, 2005
    Messages:
    4,150
    Likes Received:
    0
    Location:
    Apple Valley, CA
    Car is not finished so no ET - hope is OK to post
    Engine: 535 cid. 4.400 bore & 4.400 stroke
    Manley 6.95" rods with Chrysler rod journals
    Custom pistons with 8.8 to 1 compression.
    Potter pan and girdle
    Ported iron heads with 2.19 in and 1.84 ex  tripple springs with titanium retainers
    7/16" pushrods.  T&D rocker system
    cam is a Comp solid roller - .672 in lift and .660 ex lift    254* @.050 in and 262* @ .050 ex  on a 114 lsa  bushed lifter bores
    Intake is a BDS 1071 blower with 2 900 cfm throttle boddies
    Two inline FI fuel pumps to supply plenty of fuel
    Was dyno'd with 2 different carbs (not the FI) and 5 lbs of boost near 800 HP and 735 TQ
    Custom built (by me) coated headers  3" ceramic coated exhaust with Borla mufflers
    Body is 1950 Nash Ambassador
    Tubbed, caged, and fitted with a full frame. Fatman front end
    Competition Engineering Magnum 4 link rear.
    4" Nascar driveshaft
    Turbo 400 with Gear Vender OD - Ford 9" with custom housing and third member. 3.45 gear ratio    and 29" x 15" Hoosier street radials
    2000 (rated) stall convertor

  10. fuzz

    fuzz New Member

    Joined:
    Jul 4, 2007
    Messages:
    38
    Likes Received:
    0
    Hi all...since this picture was taken I have finished the truk, it now has windows and went to the track friday nite for test and tune.
    [​IMG]
    It is a 51 Ford pickup cab chopped 4 inches, sittin on an 84 S10 frame that I back halfed using ladder bars and coil overs with a 9 in rear, 3.50 gear with spool and 31 spline ford axles. Wheels are Monoque with 16 x 33 goodyears from a swap meet, couldn't pass on the price. 500 caddy is .030 over with 353 KBs on 4130 I beam rods. 270H Comp cam Cloyes chain, chevy lifters 3/8 pushrods, I think they are 10.1?..Potters adjustable shaft rockers. Heads are 950s with 2.11 and 1.77 pontiac valves, 1.25 small block springs at 120 seat pressure. Little pocket porting to acomodate the valves. 2115 Edelbrock, no mods, 870 Holley street avenger. HEI dizzy , MSD coil, no vaccum advance, light advance springs gives it 20* at 2000 rpm for a total of 30* crankshaft. Headers are 1 7/8 tubes all about 45 inches long into 3.50 collector. Loud next to my ear drums. 350 turbo trans with race clutches and shift kit but still has modulator. May chang that.
    Went to test and tune  and best ET is 8.09 1/8 mile and 12.50 at 1/4 mi. Seriuos bog at mid track, will work on that cuz I want at least 11 second 1/4 miles. ;)

  11. GearDrive

    GearDrive Member

    Joined:
    Jan 19, 2010
    Messages:
    30
    Likes Received:
    0
    100 ft in 40 seconds

    http://www.youtube.com/watch?v=fYda37YzWAs

    Stock 500 Cad. w/intake and headers.

    TH350 trans

    NP205 t-case

    4.10 gears

    44inch tires

    Full hydraulic steering (from a combine)

    16 inch travel coilover shocks.

  12. fuzzy

    fuzzy New Member

    Joined:
    Oct 25, 2009
    Messages:
    20
    Likes Received:
    0
    Here's alittle update...combination remains the same except after trying 3 different carbs I settled with a 4779. 74 primary jets, 76 sec. 30cc front pump,31 squirter, 50cc sec pumpw/35 squirter. This carb does not bog like all previous carbs.
    60ft..1.637
    1/8mi. 7.587
    91 mph.
    [​IMG]
    [​IMG]

  13. 74 Novallac

    74 Novallac New Member

    Joined:
    Jul 4, 2010
    Messages:
    946
    Likes Received:
    0
    You can call me 74 Novallac now. I used to be Bonneville 500. That car is long gone but the engine is going into my 74 Nova. It used to be a ten second drag car (with a 468 chevy) that the guy I bought it from had returned to the street. My wife and I have made quite a few street improvements to it, i.e. power fourwheel disc brakes, power steering, better seats, heater, more streetable 2.75 gears, etc. I can't wait to see what the Bonneville's old engine will do in this car considering the heads have been fully ported and it now has headers and a Cad Co. 250 cam and shaft rockers. I plan to get an Edelbrock intake too. Been thinking about a 125 hp N2O kit but up here in N.H. that's illegal on the street. :nono: :weeping: The Nova has been backhalved with a nine inch ford rearend, full rollcage, ladderbars and coilovers. I found the former race days owner and he filled me in on what the car was like then. It pulled wheelies and ran 1.5 sec 60 foot times. Should be fun as a street car! :yes: The engine coming out of the Nova is a crate 350 with a Weiand 177 blower. It runs great and is for sale for $4,000.00 :eyebrow: I wonder how the gas mileage will compair? Best I ever got with the chevy combo was 17.5. :thumbdown:

  14. 74 Novallac

    74 Novallac New Member

    Joined:
    Jul 4, 2010
    Messages:
    946
    Likes Received:
    0
    This is the day my wife and I bought it. Like I said, we've made quite a few changes since then.


    Attached Files:

  15. 74 Novallac

    74 Novallac New Member

    Joined:
    Jul 4, 2010
    Messages:
    946
    Likes Received:
    0
    This is a little later.


    Attached Files:

  16. 74 Novallac

    74 Novallac New Member

    Joined:
    Jul 4, 2010
    Messages:
    946
    Likes Received:
    0
    Here's the Nova back in it's racing days at New
    England Dragway in Epping, N.H. It had a shorter hoodscoop then. The times were 10.8@131.


    Attached Files:

    • 496.gif
      File size:
      52 KB
      Views:
      23,391
  17. hertzdaddy

    hertzdaddy Active Member

    Joined:
    Jul 30, 2007
    Messages:
    1,021
    Likes Received:
    5
    Location:
    Richmond, VA
    I met fuzzy today and took an old 472 block and heads off his hands. Sad to say that the old Ford truck is no longer part of his livery. Super nice guy to talk too and had a neat VW/sbc project in the works. I hate to lose another Caddy fraternity member though.

  18. langy

    langy New Member

    Joined:
    Feb 10, 2008
    Messages:
    237
    Likes Received:
    0
    Location:
    watford, england
    Quite amazing on stock pistons & rods. i would love to see a pic of this car.




  19. cadillac512

    cadillac512 Active Member

    Joined:
    Oct 13, 2004
    Messages:
    3,909
    Likes Received:
    4
    Location:
    Kansas
    This one?

    [​IMG]


    It went 9.94 at 131 after I posted the list you quoted.Same engine and setup though.

    Terry

  20. langy

    langy New Member

    Joined:
    Feb 10, 2008
    Messages:
    237
    Likes Received:
    0
    Location:
    watford, england
    That looks to be an awesome ride Terry, I'm hoping to get into the 10's with mine when finished, my engine spec is very very similair to yours so you have given me hope !!!
    My spec is
    500 block bored +60" decked, oilways ported etc etc
    10-1 KB flat tops & Moly rings
    MTS 120cc ported/polished heads
    MTS 20 cam
    MTS rocker shaft kit
    Edelbrock inlet ported and matched
    Holley 850cfm Carb, slightly modified
    TCI trans with transbrake


    I couldn't help noticing your running stock rods, Have you encountered any problems ??? I was under the impression they wouldn't hold up to big power.




Share This Page
